Official Theme: monochrome
Theme monochrome has colors between black and white.
There are many possibility that printed documents and published books has only black color.
This theme is useful for those kind of situation.
The styling rules are the same as those for the default theme.
If you are unfamiliar with these rules, please refer to the documentation for the default theme first, as this document does not provide detailed styling information.
Colors
Theme monochrome posses 7 colors between black and white.

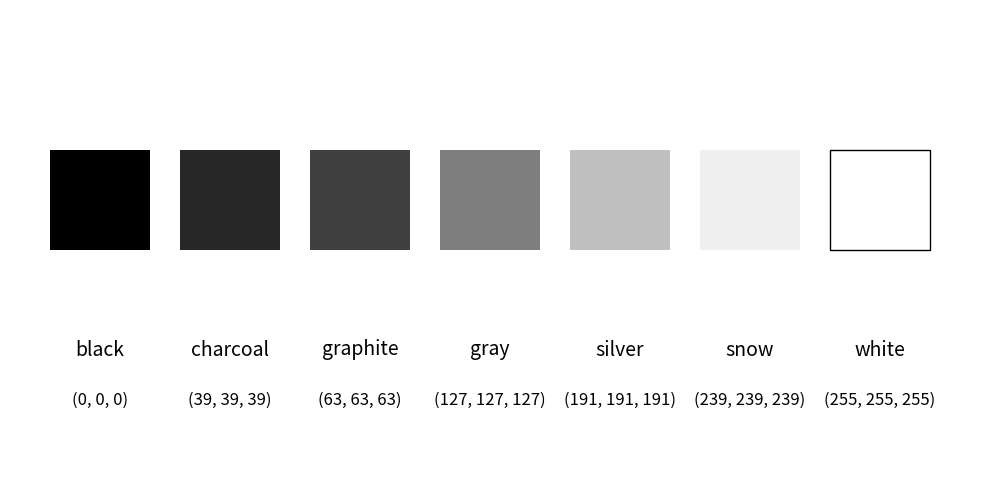

Theme monochrome color chart
Here is a list of the colors.
You can use ColorsThemeMonochrome to retrieve RGB codes by their names.
black: RGB(0, 0, 0)charcoal: RGB(39, 39, 39)graphite: RGB(63, 63, 63)gray: RGB(127, 127, 127)silver: RGB(191, 191, 191)snow: RGB(239, 239, 239)white: RGB(255, 255, 255)
Style Names
Here is a list of style names.
style table
1from drawlib.apis import *
2
3dtheme.apply_official_theme("monochrome")
4dtheme.print_style_table()
5
6# +----------------+---+-------+------+------+-------+-------------+------------+--------+--------------+-------------+
7# | class \ name | | light | bold | flat | solid | solid_light | solid_bold | dashed | dashed_light | dashed_bold |
8# +----------------+---+-------+------+------+-------+-------------+------------+--------+--------------+-------------+
9# | IconStyle | x | x | x | x | | | | | | |
10# | ImageStyle | x | x | x | x | x | x | x | x | x | x |
11# | LineStyle | x | x | x | | x | x | x | x | x | x |
12# | ShapeStyle | x | x | x | x | x | x | x | x | x | x |
13# | ShapeTextStyle | x | x | x | | | | | | | |
14# | TextStyle | x | x | x | | | | | | | |
15# +----------------+---+-------+------+------+-------+-------------+------------+--------+--------------+-------------+
16
17# +----------------+-------+-------------+------------+------------+-------------+-------------------+------------------+--------------+--------------------+-------------------+
18# | class \ name | black | black_light | black_bold | black_flat | black_solid | black_solid_light | black_solid_bold | black_dashed | black_dashed_light | black_dashed_bold |
19# +----------------+-------+-------------+------------+------------+-------------+-------------------+------------------+--------------+--------------------+-------------------+
20# | IconStyle | x | x | x | x | | | | | | |
21# | ImageStyle | x | x | x | x | x | x | x | x | x | x |
22# | LineStyle | x | x | x | | x | x | x | x | x | x |
23# | ShapeStyle | x | x | x | x | x | x | x | x | x | x |
24# | ShapeTextStyle | x | x | x | | | | | | | |
25# | TextStyle | x | x | x | | | | | | | |
26# +----------------+-------+-------------+------------+------------+-------------+-------------------+------------------+--------------+--------------------+-------------------+
27
28# +----------------+----------+----------------+---------------+---------------+----------------+----------------------+---------------------+-----------------+-----------------------+----------------------+
29# | class \ name | charcoal | charcoal_light | charcoal_bold | charcoal_flat | charcoal_solid | charcoal_solid_light | charcoal_solid_bold | charcoal_dashed | charcoal_dashed_light | charcoal_dashed_bold |
30# +----------------+----------+----------------+---------------+---------------+----------------+----------------------+---------------------+-----------------+-----------------------+----------------------+
31# | IconStyle | x | x | x | x | | | | | | |
32# | ImageStyle | x | x | x | x | x | x | x | x | x | x |
33# | LineStyle | x | x | x | | x | x | x | x | x | x |
34# | ShapeStyle | x | x | x | x | x | x | x | x | x | x |
35# | ShapeTextStyle | x | x | x | | | | | | | |
36# | TextStyle | x | x | x | | | | | | | |
37# +----------------+----------+----------------+---------------+---------------+----------------+----------------------+---------------------+-----------------+-----------------------+----------------------+
38
39# +----------------+----------+----------------+---------------+---------------+----------------+----------------------+---------------------+-----------------+-----------------------+----------------------+
40# | class \ name | graphite | graphite_light | graphite_bold | graphite_flat | graphite_solid | graphite_solid_light | graphite_solid_bold | graphite_dashed | graphite_dashed_light | graphite_dashed_bold |
41# +----------------+----------+----------------+---------------+---------------+----------------+----------------------+---------------------+-----------------+-----------------------+----------------------+
42# | IconStyle | x | x | x | x | | | | | | |
43# | ImageStyle | x | x | x | x | x | x | x | x | x | x |
44# | LineStyle | x | x | x | | x | x | x | x | x | x |
45# | ShapeStyle | x | x | x | x | x | x | x | x | x | x |
46# | ShapeTextStyle | x | x | x | | | | | | | |
47# | TextStyle | x | x | x | | | | | | | |
48# +----------------+----------+----------------+---------------+---------------+----------------+----------------------+---------------------+-----------------+-----------------------+----------------------+
49
50# +----------------+------+------------+-----------+-----------+------------+------------------+-----------------+-------------+-------------------+------------------+
51# | class \ name | gray | gray_light | gray_bold | gray_flat | gray_solid | gray_solid_light | gray_solid_bold | gray_dashed | gray_dashed_light | gray_dashed_bold |
52# +----------------+------+------------+-----------+-----------+------------+------------------+-----------------+-------------+-------------------+------------------+
53# | IconStyle | x | x | x | x | | | | | | |
54# | ImageStyle | x | x | x | x | x | x | x | x | x | x |
55# | LineStyle | x | x | x | | x | x | x | x | x | x |
56# | ShapeStyle | x | x | x | x | x | x | x | x | x | x |
57# | ShapeTextStyle | x | x | x | | | | | | | |
58# | TextStyle | x | x | x | | | | | | | |
59# +----------------+------+------------+-----------+-----------+------------+------------------+-----------------+-------------+-------------------+------------------+
60
61# +----------------+--------+--------------+-------------+-------------+--------------+--------------------+-------------------+---------------+---------------------+--------------------+
62# | class \ name | silver | silver_light | silver_bold | silver_flat | silver_solid | silver_solid_light | silver_solid_bold | silver_dashed | silver_dashed_light | silver_dashed_bold |
63# +----------------+--------+--------------+-------------+-------------+--------------+--------------------+-------------------+---------------+---------------------+--------------------+
64# | IconStyle | x | x | x | x | | | | | | |
65# | ImageStyle | x | x | x | x | x | x | x | x | x | x |
66# | LineStyle | x | x | x | | x | x | x | x | x | x |
67# | ShapeStyle | x | x | x | x | x | x | x | x | x | x |
68# | ShapeTextStyle | x | x | x | | | | | | | |
69# | TextStyle | x | x | x | | | | | | | |
70# +----------------+--------+--------------+-------------+-------------+--------------+--------------------+-------------------+---------------+---------------------+--------------------+
71
72# +----------------+------+------------+-----------+-----------+------------+------------------+-----------------+-------------+-------------------+------------------+
73# | class \ name | snow | snow_light | snow_bold | snow_flat | snow_solid | snow_solid_light | snow_solid_bold | snow_dashed | snow_dashed_light | snow_dashed_bold |
74# +----------------+------+------------+-----------+-----------+------------+------------------+-----------------+-------------+-------------------+------------------+
75# | IconStyle | x | x | x | x | | | | | | |
76# | ImageStyle | x | x | x | x | x | x | x | x | x | x |
77# | LineStyle | x | x | x | | x | x | x | x | x | x |
78# | ShapeStyle | x | x | x | x | x | x | x | x | x | x |
79# | ShapeTextStyle | x | x | x | | | | | | | |
80# | TextStyle | x | x | x | | | | | | | |
81# +----------------+------+------------+-----------+-----------+------------+------------------+-----------------+-------------+-------------------+------------------+
82
83# +----------------+-------+-------------+------------+------------+-------------+-------------------+------------------+--------------+--------------------+-------------------+
84# | class \ name | white | white_light | white_bold | white_flat | white_solid | white_solid_light | white_solid_bold | white_dashed | white_dashed_light | white_dashed_bold |
85# +----------------+-------+-------------+------------+------------+-------------+-------------------+------------------+--------------+--------------------+-------------------+
86# | IconStyle | x | x | x | x | | | | | | |
87# | ImageStyle | x | x | x | x | x | x | x | x | x | x |
88# | LineStyle | x | x | x | | x | x | x | x | x | x |
89# | ShapeStyle | x | x | x | x | x | x | x | x | x | x |
90# | ShapeTextStyle | x | x | x | | | | | | | |
91# | TextStyle | x | x | x | | | | | | | |
92# +----------------+-------+-------------+------------+------------+-------------+-------------------+------------------+--------------+--------------------+-------------------+
Color: default
Theme Style default

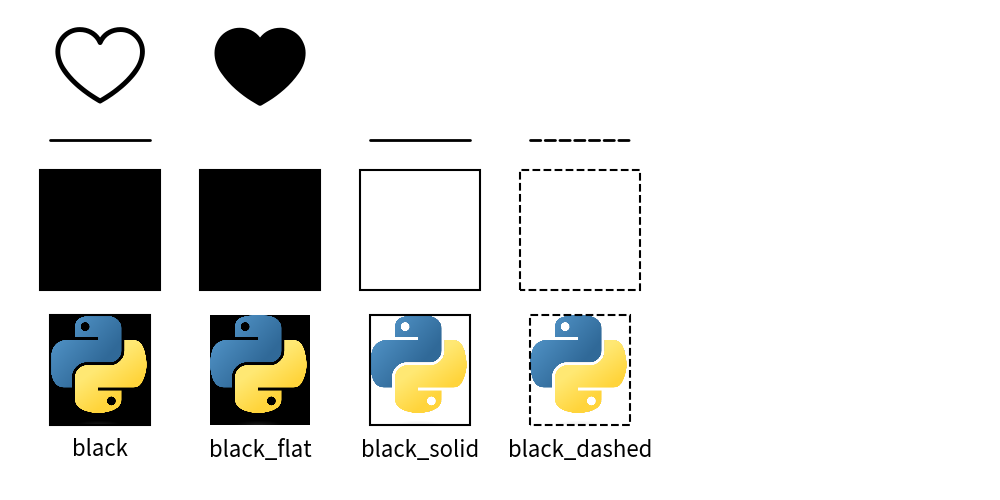

Color: black
Theme Style black
Color: charcoal
Theme Style charcoal
Color: graphite
Theme Style graphite

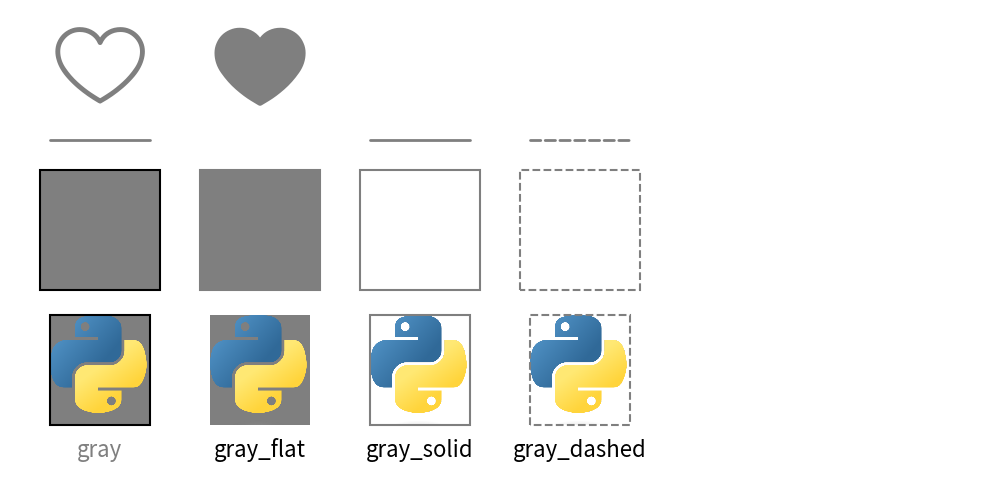

Color: gray
Theme Style gray

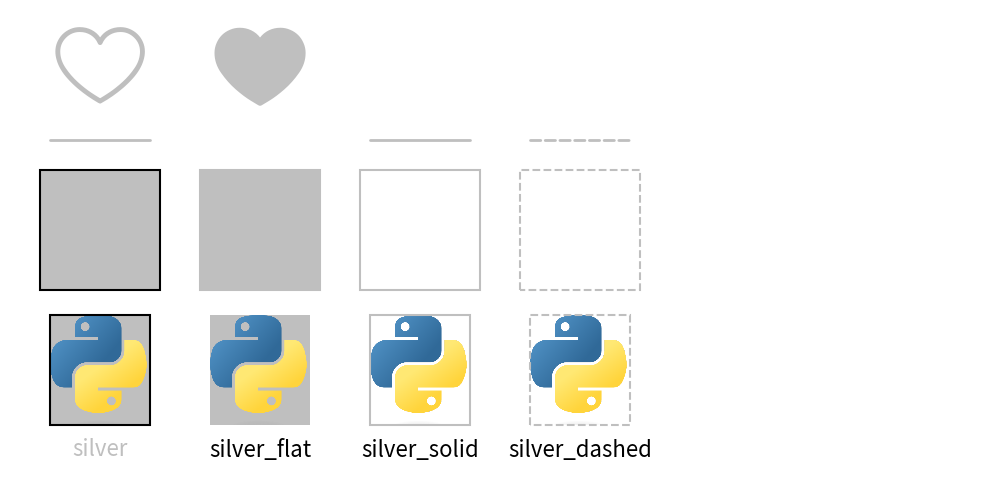

Color: silver
Theme Style silver

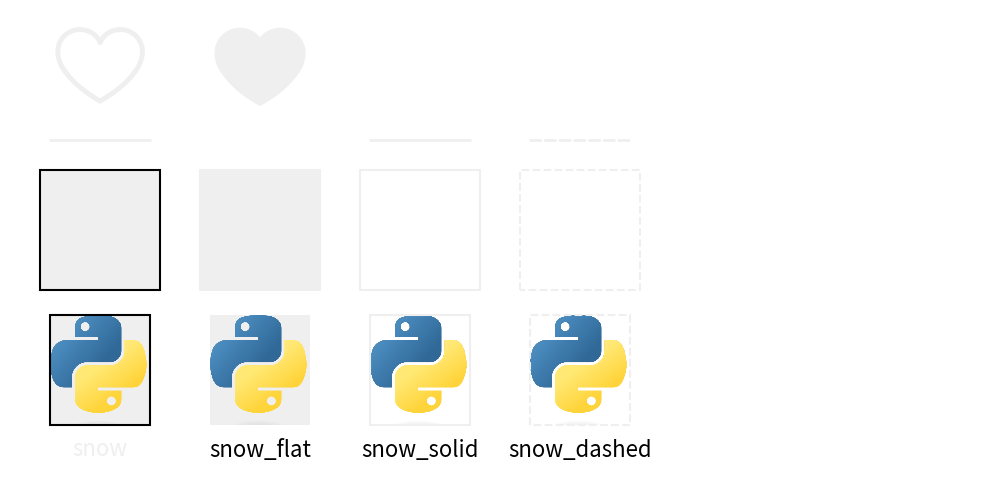

Color: snow
Theme Style snow

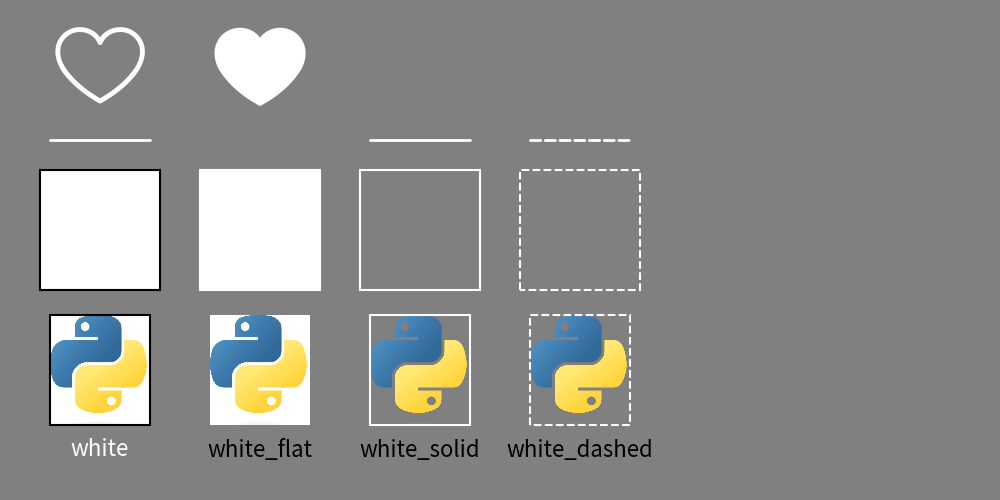

Color: white
Theme Style white
