Official Theme: default
The default theme is the standard Drawlib theme.
We will explain style naming rule at this document.
Colors
The default theme includes 5 colors.
Theme default color chart
Here is a list of the colors.
You can use ColorsThemeDefault to retrieve RGB codes by their names.
red: RGB(239, 95, 95)green: RGB(79, 191, 79)blue: RGB(111, 111, 239)black: RGB(0, 0, 0)white: RGB(255, 255, 255)

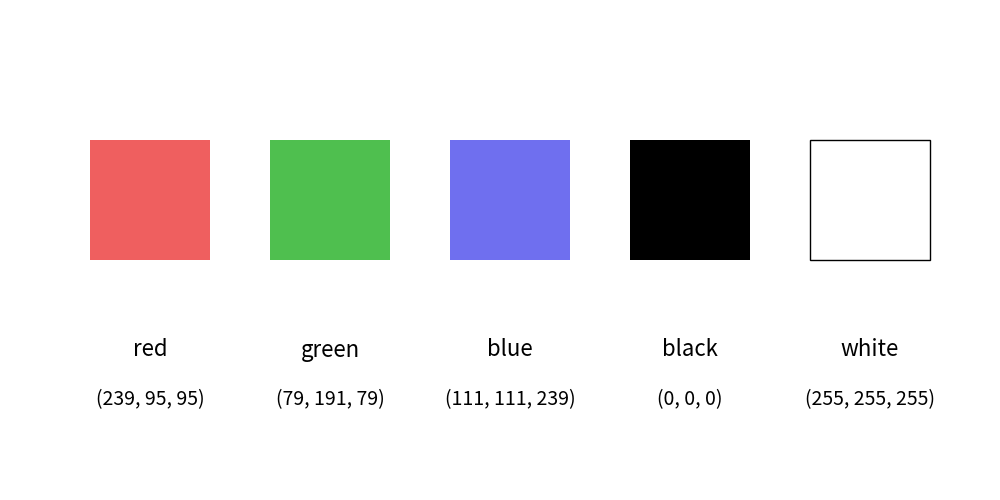

Here is a color chart:
Style Types
The default theme possesses these style types for all colors:

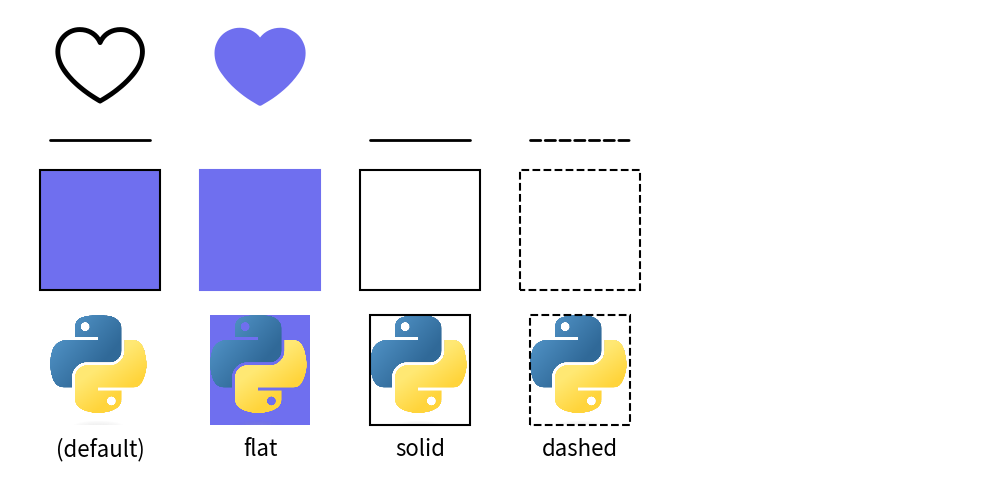

default: Has both border and fill color
flat: No border (actually has a white color)solid: Shape has an outline but no filldashed: Dashed line, dashed outline
Each style type has variations of weight (line width, font weight) except for flat, which doesn’t have a line:
light: Half of default’s line width. Font light.default: Font regular.bold: Double the default’s line width. Font bold.
Remember, the style names follow this syntax: <color>_<type>_<weight>.
If the color, type, and weight are default, they may not appear in the style name.

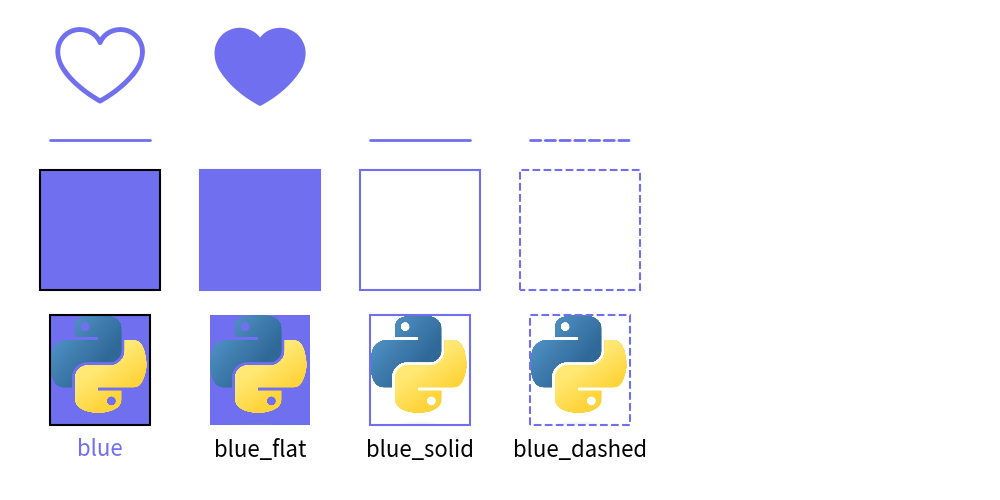

Let’s take a look at a matrix with the blue color as an example:

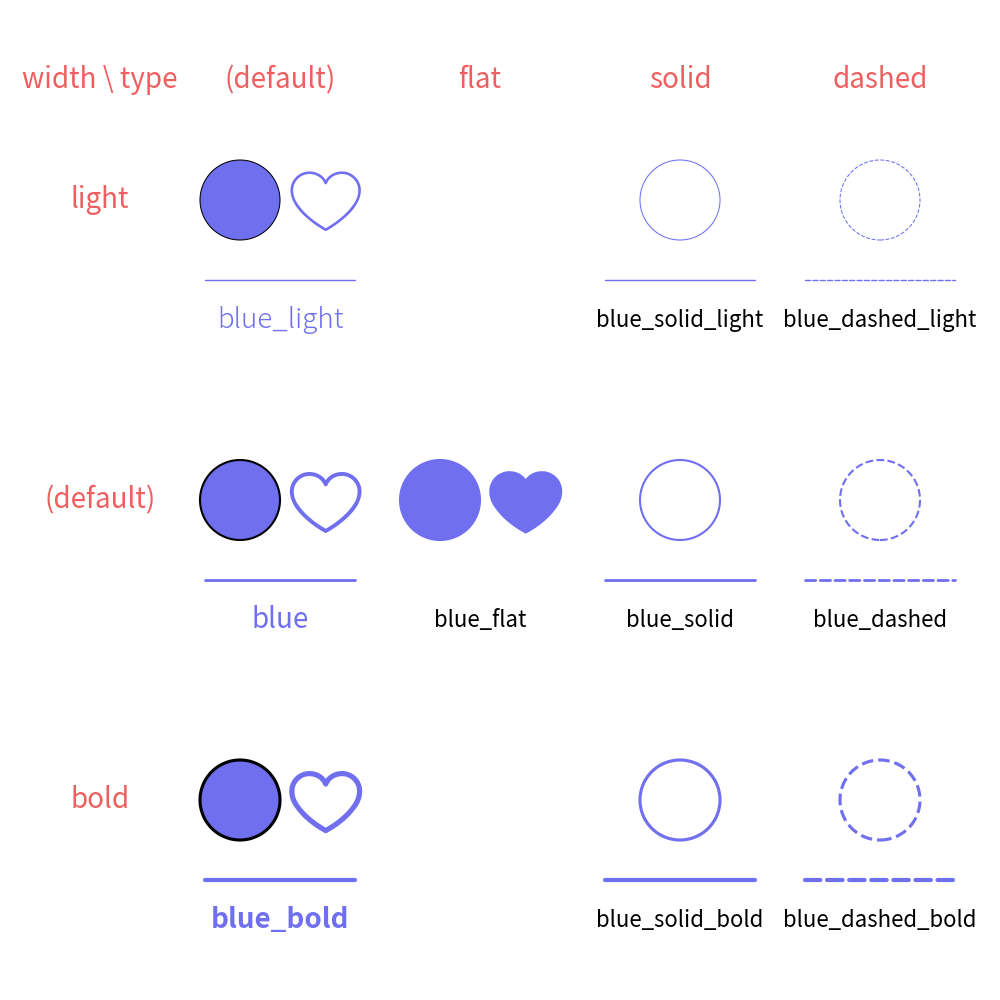

Style type and width
As you can see, each style has these effects:
ShapeStyle: Both style and width work.IconStyle: Line width can be controlled with width; flat style makes it fill.LineStyle: Width has an effect; flat style doesn’t support line.TextStyle: Only the default type is supported; width affects font (light/regular/bold).
Although not shown in the example, other styles have these effects:
ImageStyle: Similar to ShapeStyle, but the default has no line and fill.ShapeTextStyle: Similar to TextStyle.
You can check which style supports which style class by calling dtheme.print_style_table().
It will generate a matrix of style names and style classes.
If x is checked, it means it is supported.
Let’s take a look at the blue example:
+----------------+------+------------+-----------+-----------+------------+------------------+-----------------+-------------+-------------------+------------------+
| class \ name | blue | blue_light | blue_bold | blue_flat | blue_solid | blue_solid_light | blue_solid_bold | blue_dashed | blue_dashed_light | blue_dashed_bold |
+----------------+------+------------+-----------+-----------+------------+------------------+-----------------+-------------+-------------------+------------------+
| IconStyle | x | x | x | x | | | | | | |
| ImageStyle | x | x | x | x | x | x | x | x | x | x |
| LineStyle | x | x | x | | x | x | x | x | x | x |
| ShapeStyle | x | x | x | x | x | x | x | x | x | x |
| ShapeTextStyle | x | x | x | | | | | | | |
| TextStyle | x | x | x | | | | | | | |
+----------------+------+------------+-----------+-----------+------------+------------------+-----------------+-------------+-------------------+------------------+
As you can see, flat doesn’t have a weight(light, bold).
It can be used for only IconStyle, ImageStyle, and ShapeStyle.
Here is a tip for remembering the rule:
default type supports all classes.
flat supports styles that can be filled.
solid and dashed support styles that have a line.
Please remember, this naming rule is common in other official themes as well.
Style Names
Here is a list of style names:
1from drawlib.apis import *
2
3dtheme.print_style_table()
4
5# +----------------+---+-------+------+------+-------+-------------+------------+--------+--------------+-------------+
6# | class \ name | | light | bold | flat | solid | solid_light | solid_bold | dashed | dashed_light | dashed_bold |
7# +----------------+---+-------+------+------+-------+-------------+------------+--------+--------------+-------------+
8# | IconStyle | x | x | x | x | | | | | | |
9# | ImageStyle | x | x | x | x | x | x | x | x | x | x |
10# | LineStyle | x | x | x | | x | x | x | x | x | x |
11# | ShapeStyle | x | x | x | x | x | x | x | x | x | x |
12# | ShapeTextStyle | x | x | x | | | | | | | |
13# | TextStyle | x | x | x | | | | | | | |
14# +----------------+---+-------+------+------+-------+-------------+------------+--------+--------------+-------------+
15
16# +----------------+-----+-----------+----------+----------+-----------+-----------------+----------------+------------+------------------+-----------------+
17# | class \ name | red | red_light | red_bold | red_flat | red_solid | red_solid_light | red_solid_bold | red_dashed | red_dashed_light | red_dashed_bold |
18# +----------------+-----+-----------+----------+----------+-----------+-----------------+----------------+------------+------------------+-----------------+
19# | IconStyle | x | x | x | x | | | | | | |
20# | ImageStyle | x | x | x | x | x | x | x | x | x | x |
21# | LineStyle | x | x | x | | x | x | x | x | x | x |
22# | ShapeStyle | x | x | x | x | x | x | x | x | x | x |
23# | ShapeTextStyle | x | x | x | | | | | | | |
24# | TextStyle | x | x | x | | | | | | | |
25# +----------------+-----+-----------+----------+----------+-----------+-----------------+----------------+------------+------------------+-----------------+
26
27# +----------------+-------+-------------+------------+------------+-------------+-------------------+------------------+--------------+--------------------+-------------------+
28# | class \ name | green | green_light | green_bold | green_flat | green_solid | green_solid_light | green_solid_bold | green_dashed | green_dashed_light | green_dashed_bold |
29# +----------------+-------+-------------+------------+------------+-------------+-------------------+------------------+--------------+--------------------+-------------------+
30# | IconStyle | x | x | x | x | | | | | | |
31# | ImageStyle | x | x | x | x | x | x | x | x | x | x |
32# | LineStyle | x | x | x | | x | x | x | x | x | x |
33# | ShapeStyle | x | x | x | x | x | x | x | x | x | x |
34# | ShapeTextStyle | x | x | x | | | | | | | |
35# | TextStyle | x | x | x | | | | | | | |
36# +----------------+-------+-------------+------------+------------+-------------+-------------------+------------------+--------------+--------------------+-------------------+
37
38# +----------------+------+------------+-----------+-----------+------------+------------------+-----------------+-------------+-------------------+------------------+
39# | class \ name | blue | blue_light | blue_bold | blue_flat | blue_solid | blue_solid_light | blue_solid_bold | blue_dashed | blue_dashed_light | blue_dashed_bold |
40# +----------------+------+------------+-----------+-----------+------------+------------------+-----------------+-------------+-------------------+------------------+
41# | IconStyle | x | x | x | x | | | | | | |
42# | ImageStyle | x | x | x | x | x | x | x | x | x | x |
43# | LineStyle | x | x | x | | x | x | x | x | x | x |
44# | ShapeStyle | x | x | x | x | x | x | x | x | x | x |
45# | ShapeTextStyle | x | x | x | | | | | | | |
46# | TextStyle | x | x | x | | | | | | | |
47# +----------------+------+------------+-----------+-----------+------------+------------------+-----------------+-------------+-------------------+------------------+
48
49# +----------------+-------+-------------+------------+------------+-------------+-------------------+------------------+--------------+--------------------+-------------------+
50# | class \ name | black | black_light | black_bold | black_flat | black_solid | black_solid_light | black_solid_bold | black_dashed | black_dashed_light | black_dashed_bold |
51# +----------------+-------+-------------+------------+------------+-------------+-------------------+------------------+--------------+--------------------+-------------------+
52# | IconStyle | x | x | x | x | | | | | | |
53# | ImageStyle | x | x | x | x | x | x | x | x | x | x |
54# | LineStyle | x | x | x | | x | x | x | x | x | x |
55# | ShapeStyle | x | x | x | x | x | x | x | x | x | x |
56# | ShapeTextStyle | x | x | x | | | | | | | |
57# | TextStyle | x | x | x | | | | | | | |
58# +----------------+-------+-------------+------------+------------+-------------+-------------------+------------------+--------------+--------------------+-------------------+
59
60# +----------------+-------+-------------+------------+------------+-------------+-------------------+------------------+--------------+--------------------+-------------------+
61# | class \ name | white | white_light | white_bold | white_flat | white_solid | white_solid_light | white_solid_bold | white_dashed | white_dashed_light | white_dashed_bold |
62# +----------------+-------+-------------+------------+------------+-------------+-------------------+------------------+--------------+--------------------+-------------------+
63# | IconStyle | x | x | x | x | | | | | | |
64# | ImageStyle | x | x | x | x | x | x | x | x | x | x |
65# | LineStyle | x | x | x | | x | x | x | x | x | x |
66# | ShapeStyle | x | x | x | x | x | x | x | x | x | x |
67# | ShapeTextStyle | x | x | x | | | | | | | |
68# | TextStyle | x | x | x | | | | | | | |
69# +----------------+-------+-------------+------------+------------+-------------+-------------------+------------------+--------------+--------------------+-------------------+
color: default
color: red.
color: green.
color: blue.

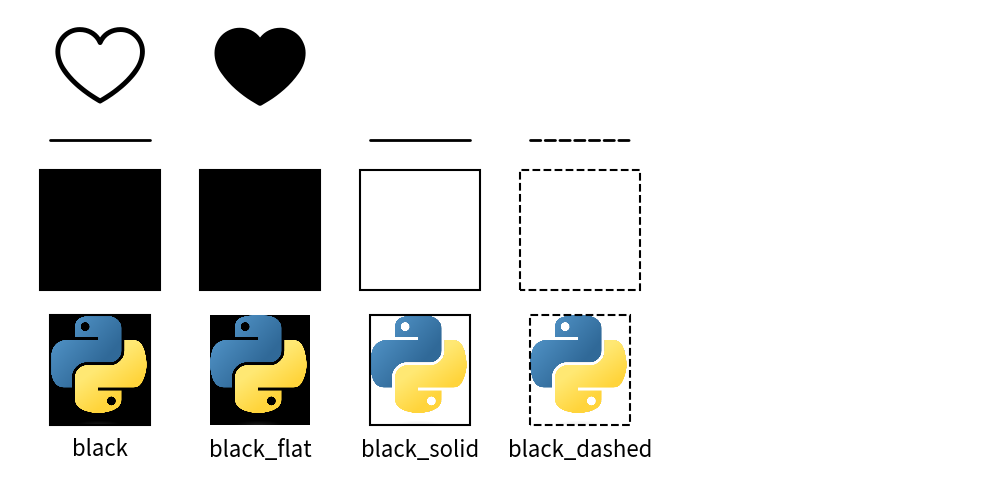

color: black.

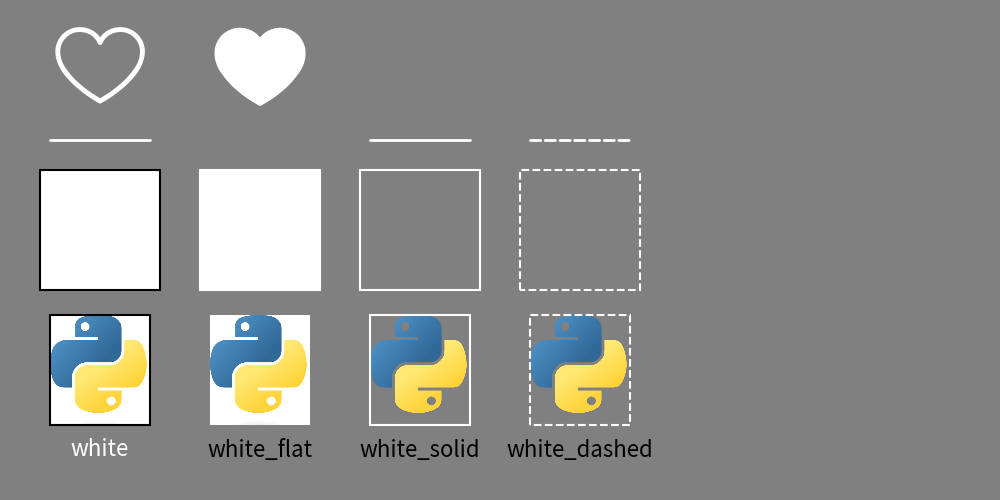

color: white.
