Pyramid

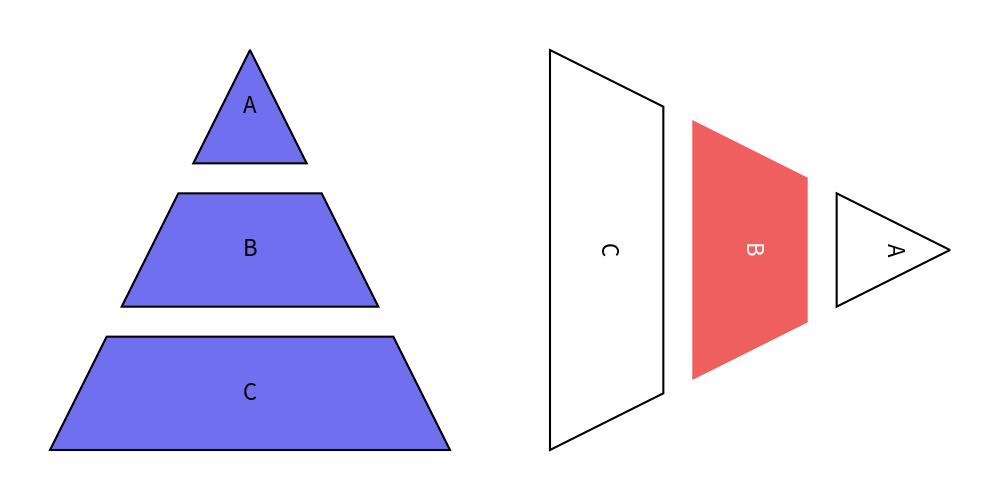

Class dsart.Pyramid draws smart art pyramid with custom style and orientation.

../../../_images/image115.png


You can draw pyramid with these procedure.

  1. Initialize instance with specifying default style

  2. Add pyramid items with optional custom style

  3. Draw pyramid with specified position, size and alignment.

API Specification

dsart.Pyramid()

Initialize instance.

Args

  • default_style (Union[str, ShapeStyle, None], optional): The default style for the pyramid shapes. It can be a string that maps to a ShapeStyle or a ShapeStyle instance. Defaults to None.

  • default_textstyle (Union[str, ShapeTextStyle, None], optional): The default text style for the pyramid shapes. It can be a string that maps to a ShapeTextStyle or a ShapeTextStyle instance. Defaults to None.

  • default_textangle (Optional[float], optional): The default rotation angle for the text within the pyramid shapes. Defaults to None.

  • default_text_xy_shift (Optional[Tuple[float, float]], optional): The default x and y shift for the text within the pyramid shapes. Defaults to None.

add()

Add an item to the pyramid.

Args:

  • text (str): The text associated with the item.

  • style (Union[str, ShapeStyle, None], optional): The style of the item. Can be a string key for a predefined style, a ShapeStyle object, or None to use the default style.

  • textstyle (Union[str, ShapeTextStyle, None], optional): The text style of the item. Can be a string key for a predefined text style, a ShapeTextStyle object, or None to use the default text style.

  • textangle (Optional[float], optional): The angle of the text. Default is None, which is same to 0.

  • text_xy_shift (Optional[Tuple[float, float]], optional): The XY shift of the text. Default is None, which is same to (0, 0).

draw()

Draw smart art pyramid.

Args:

  • xy (Tuple[float, float]): The x and y coordinates of the bottom-left corner of the pyramid.

  • width (float): The width of the pyramid.

  • height (float): The heifht of the pyramid.

  • margin (float): The margin between pyramid items.

  • align (str): Alignment of a pyramid.

  • order (str): Item order. “vertex -> base” or “base -> vertex”. default is “vertex -> base”.

draw_flexible()

Draw smart art pyramid with flexible pyramid item heights.

Args:

  • xy (Tuple[float, float]): The x and y coordinates of the bottom-left corner of the pyramid.

  • width (float): The width of the pyramid.

  • item_heights (float): The height of the each pyramid items.

  • margins (float): The margin between pyramid items.

  • align (str): Alignment of a pyramid.

  • order (str): Item order. “vertex -> base” or “base -> vertex”. default is “vertex -> base”.
