Color Classes

Drawlib’s color format is either RGB (Red, Green, Blue) or RGBA (RGB with Alpha). The RGB format is represented as tuple(0-255, 0-255, 0-255), and the RGBA format is tuple(0-255, 0-255, 0-255, 0.0-1.0). For simplicity, Drawlib does not support string color codes (e.g., “red”) or hex style codes (e.g., “#00FF00”).

However, using RGB can be inconvenient for basic colors. Therefore, we provide Color classes. Currently, we offer the following classes:

  • Colors: basic web 16 colors + Transparent

  • Colors140: basic web 140 colors + Transparent

  • ColorsThemeDefault: Colors which are used in theme default

  • ColorsThemeEssentials: Colors which are used in theme essentials

  • ColorsThemeMonochrome: Colors which are used in theme monochrome

  • ColorBase: Base class for creating your own Color class

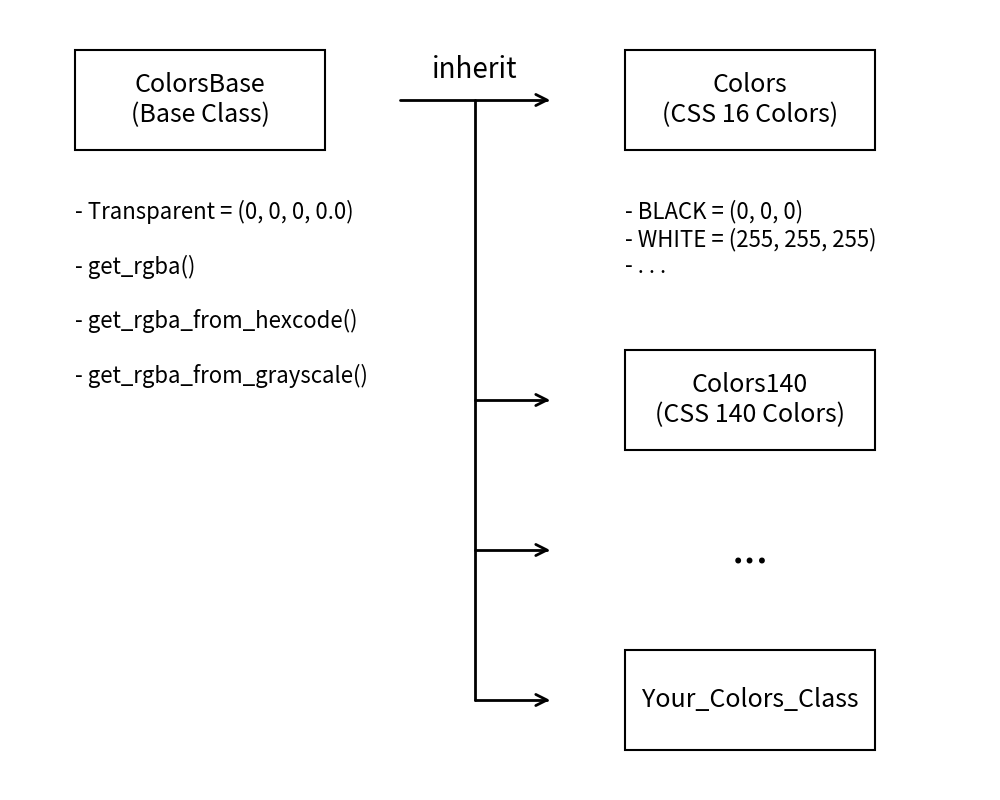

Here is an image showing their relationships:

../../../_images/image_architecture.png

Structure of color classes

As you can see, ColorsBase class implements the Transparent color and utility functions. Each child class inherits these and implements its own colors.

You can create your own color class as well. Let’s look at an example of creating a Google color class at end of this page.

Colors

The Colors class contains the following members:

  • Transparent: (0, 0, 0, 0.0)

  • Aqua: (0, 255, 255)

  • Black: (0, 0, 0)

  • Blue: (0, 0, 255)

  • Fuchsia: (255, 0, 255)

  • Gray: (128, 128, 128)

  • Green: (0, 128, 0)

  • Lime: (0, 255, 0)

  • Maroon: (128, 0, 0)

  • Navy: (0, 0, 128)

  • Olive: (128, 128, 0)

  • Purple: (128, 0, 128)

  • Red: (255, 0, 0)

  • Silver: (192, 192, 192)

  • Teal: (0, 128, 128)

  • White: (255, 255, 255)

  • Yellow: (255, 255, 0)

Colors140

The Colors140 class contains the following members:

  • Transparent: (0, 0, 0, 0.0)

  • AliceBlue: (240, 248, 255)

  • AntiqueWhite: (250, 235, 215)

  • Aqua: (0, 255, 255)

  • Aquamarine: (127, 255, 212)

  • Azure: (240, 255, 255)

  • Beige: (245, 245, 220)

  • Bisque: (255, 228, 196)

  • Black: (0, 0, 0)

  • BlanchedAlmond: (255, 235, 205)

  • Blue: (0, 0, 255)

  • BlueViolet: (138, 43, 226)

  • Brown: (165, 42, 42)

  • BurlyWood: (222, 184, 135)

  • CadetBlue: (95, 158, 160)

  • Chartreuse: (127, 255, 0)

  • Chocolate: (210, 105, 30)

  • Coral: (255, 127, 80)

  • CornflowerBlue: (100, 149, 237)

  • Cornsilk: (255, 248, 220)

  • Crimson: (220, 20, 60)

  • Cyan: (0, 255, 255)

  • DarkBlue: (0, 0, 139)

  • DarkCyan: (0, 139, 139)

  • DarkGoldenRod: (184, 134, 11)

  • DarkGray: (169, 169, 169)

  • DarkGreen: (0, 100, 0)

  • DarkKhaki: (189, 183, 107)

  • DarkMagenta: (139, 0, 139)

  • DarkOliveGreen: (85, 107, 47)

  • DarkOrange: (255, 140, 0)

  • DarkOrchid: (153, 50, 204)

  • DarkRed: (139, 0, 0)

  • DarkSalmon: (233, 150, 122)

  • DarkSeaGreen: (143, 188, 143)

  • DarkSlateBlue: (72, 61, 139)

  • DarkSlateGray: (47, 79, 79)

  • DarkTurquoise: (0, 206, 209)

  • DarkViolet: (148, 0, 211)

  • DeepPink: (255, 20, 147)

  • DeepSkyBlue: (0, 191, 255)

  • DimGray: (105, 105, 105)

  • DodgerBlue: (30, 144, 255)

  • FireBrick: (178, 34, 34)

  • FloralWhite: (255, 250, 240)

  • ForestGreen: (34, 139, 34)

  • Fuchsia: (255, 0, 255)

  • Gainsboro: (220, 220, 220)

  • GhostWhite: (248, 248, 255)

  • Gold: (255, 215, 0)

  • GoldenRod: (218, 165, 32)

  • Gray: (128, 128, 128)

  • Green: (0, 128, 0)

  • GreenYellow: (173, 255, 47)

  • HoneyDew: (240, 255, 240)

  • HotPink: (255, 105, 180)

  • IndianRed: (205, 92, 92)

  • Indigo: (75, 0, 130)

  • Ivory: (255, 255, 240)

  • Khaki: (240, 230, 140)

  • Lavender: (230, 230, 250)

  • LavenderBlush: (255, 240, 245)

  • LawnGreen: (124, 252, 0)

  • LemonChiffon: (255, 250, 205)

  • LightBlue: (173, 216, 230)

  • LightCoral: (240, 128, 128)

  • LightCyan: (224, 255, 255)

  • LightGoldenRodYellow: (250, 250, 210)

  • LightGray: (211, 211, 211)

  • LightGreen: (144, 238, 144)

  • LightPink: (255, 182, 193)

  • LightSalmon: (255, 160, 122)

  • LightSeaGreen: (32, 178, 170)

  • LightSkyBlue: (135, 206, 250)

  • LightSlateGray: (119, 136, 153)

  • LightSteelBlue: (176, 196, 222)

  • LightYellow: (255, 255, 224)

  • Lime: (0, 255, 0)

  • LimeGreen: (50, 205, 50)

  • Linen: (250, 240, 230)

  • Magenta: (255, 0, 255)

  • Maroon: (128, 0, 0)

  • MediumAquaMarine: (102, 205, 170)

  • MediumBlue: (0, 0, 205)

  • MediumOrchid: (186, 85, 211)

  • MediumPurple: (147, 112, 219)

  • MediumSeaGreen: (60, 179, 113)

  • MediumSlateBlue: (123, 104, 238)

  • MediumSpringGreen: (0, 250, 154)

  • MediumTurquoise: (72, 209, 204)

  • MediumVioletRed: (199, 21, 133)

  • MidnightBlue: (25, 25, 112)

  • MintCream: (245, 255, 250)

  • MistyRose: (255, 228, 225)

  • Moccasin: (255, 228, 181)

  • NavajoWhite: (255, 222, 173)

  • Navy: (0, 0, 128)

  • OldLace: (253, 245, 230)

  • Olive: (128, 128, 0)

  • OliveDrab: (107, 142, 35)

  • Orange: (255, 165, 0)

  • OrangeRed: (255, 69, 0)

  • Orchid: (218, 112, 214)

  • PaleGoldenRod: (238, 232, 170)

  • PaleGreen: (152, 251, 152)

  • PaleTurquoise: (175, 238, 238)

  • PaleVioletRed: (219, 112, 147)

  • PapayaWhip: (255, 239, 213)

  • PeachPuff: (255, 218, 185)

  • Peru: (205, 133, 63)

  • Pink: (255, 192, 203)

  • Plum: (221, 160, 221)

  • PowderBlue: (176, 224, 230)

  • Purple: (128, 0, 128)

  • RebeccaPurple: (102, 51, 153)

  • Red: (255, 0, 0)

  • RosyBrown: (188, 143, 143)

  • RoyalBlue: (65, 105, 225)

  • SaddleBrown: (139, 69, 19)

  • Salmon: (250, 128, 114)

  • SandyBrown: (244, 164, 96)

  • SeaGreen: (46, 139, 87)

  • SeaShell: (255, 245, 238)

  • Sienna: (160, 82, 45)

  • Silver: (192, 192, 192)

  • SkyBlue: (135, 206, 235)

  • SlateBlue: (106, 90, 205)

  • SlateGray: (112, 128, 144)

  • Snow: (255, 250, 250)

  • SpringGreen: (0, 255, 127)

  • SteelBlue: (70, 130, 180)

  • Tan: (210, 180, 140)

  • Teal: (0, 128, 128)

  • Thistle: (216, 191, 216)

  • Tomato: (255, 99, 71)

  • Turquoise: (64, 224, 208)

  • Violet: (238, 130, 238)

  • Wheat: (245, 222, 179)

  • White: (255, 255, 255)

  • WhiteSmoke: (245, 245, 245)

  • Yellow: (255, 255, 0)

  • YellowGreen: (154, 205, 50)

ColorsThemeDefault

The ColorsThemeDefault class contains the following members:

  • Red: (239, 95, 95)

  • Green: (79, 191, 79)

  • Blue: (111, 111, 239)

  • Black: (0, 0, 0)

  • White: (255, 255, 255)

ColorsThemeEssentials

The ColorsThemeEssentials class contains the following members:

  • Red: (255, 23, 23)

  • LightRed: (239, 95, 95)

  • Green: (15, 127, 15)

  • LightGreen: (79, 191, 79)

  • Blue: (31, 31, 255)

  • LightBlue: (111, 111, 239)

  • Yellow: (239, 239, 31)

  • Purple: (127, 31, 127)

  • Orange: (255, 95, 31)

  • Navy: (15, 15, 127)

  • Pink: (239, 63, 239)

  • Charcoal: (39, 39, 39)

  • Graphite: (63, 63, 63)

  • Gray: (127, 127, 127)

  • Silver: (191, 191, 191)

  • Snow: (239, 239, 239)

  • Teal: (15, 127, 127)

  • Olive: (127, 127, 31)

  • Brown: (159, 31, 31)

  • Black: (0, 0, 0)

  • White: (255, 255, 255)

  • Aqua: (47, 239, 239)

  • GreenYellow: (127, 207, 31)

  • Ivory: (239, 239, 207)

  • Steel: (96, 96, 143)

ColorsThemeMonochrome

The ColorsThemeMonochrome class contains the following members:

  • Black: (0, 0, 0)

  • Charcoal: (39, 39, 39)

  • Graphite: (63, 63, 63)

  • Gray: (127, 127, 127)

  • Silver: (191, 191, 191)

  • Snow: (239, 239, 239)

  • White: (255, 255, 255)

Implement Your Own Colors

We provide a base class for colors called ColorsBase. You can define your own color palette class by extending this base class.

Suppose you are an official partner of Google, eligible to use their corporate colors. Let’s define these colors and use them.

Partner Marketing Hub: Google News Color Palette. https://partnermarketinghub.withgoogle.com/brands/google-news/visual-identity/color-palette/

image_mycolor.py
 1from drawlib.apis import *
 2
 3
 4# Please define color at styling codes normally.
 5class ColorsGoogle(ColorsBase):
 6    # From Official Google Color Palette
 7    # At Partner Marketing Hub
 8    Blue = (23, 78, 166)
 9    Red = (165, 14, 14)
10    Orange = (227, 116, 0)
11    Green = (32, 33, 36)
12    MediumBlue = (66, 103, 210)
13    MediumRed = (234, 67, 53)
14    Yellow = (251, 188, 4)
15    MediumGreen = (52, 168, 83)
16    LightBlue = (210, 227, 252)
17    LightRed = (250, 210, 207)
18    LightYellow = (254, 239, 195)
19    LightGreen = (206, 234, 214)
20    LightGrey = (241, 243, 244)
21    Grey = (154, 160, 166)
22    Black = (32, 33, 36)
23
24
25config(width=100, height=50)
26shape_y = 30
27circle(
28    (15, shape_y),
29    radius=10,
30    style=ShapeStyle(lwidth=0, fcolor=ColorsGoogle.MediumBlue),
31)
32triangle(
33    (37.5, shape_y),
34    width=20,
35    height=15,
36    style=ShapeStyle(lwidth=0, fcolor=ColorsGoogle.MediumRed),
37)
38rectangle(
39    (62.5, shape_y),
40    width=18,
41    height=18,
42    style=ShapeStyle(lwidth=0, fcolor=ColorsGoogle.Yellow),
43)
44wedge(
45    (85, shape_y),
46    radius=10,
47    width=5,
48    angle_end=270,
49    style=ShapeStyle(lwidth=0, fcolor=ColorsGoogle.MediumGreen),
50)
51text(
52    (50, 10),
53    "Google Colors",
54    style=TextStyle(
55        color=ColorsGoogle.Black,
56        size=32,
57        font=FontRoboto.ROBOTO_REGULAR,
58    ),
59)
60save()

In this example, we define a color class and use it in image drawing code. Typically, you should define your color class in a styling module and import it into your image code.

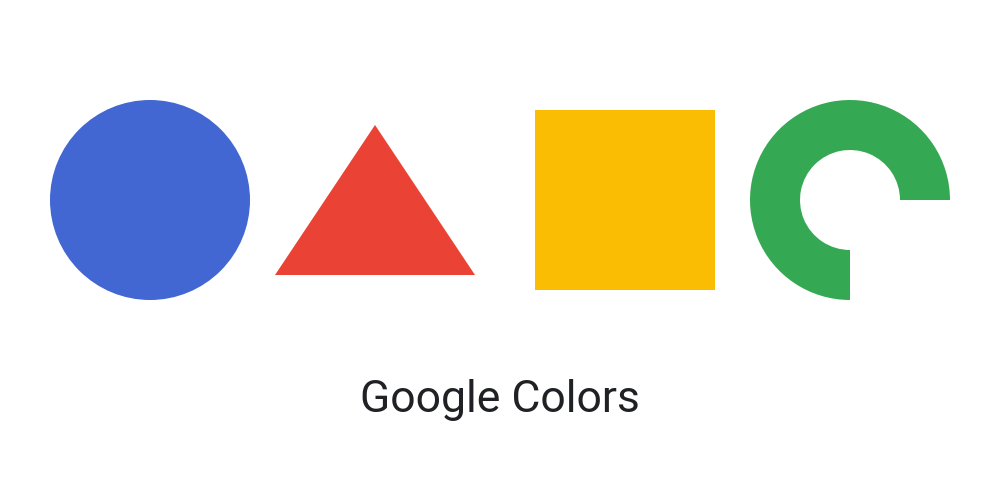

Here is the output:

../../../_images/image_mycolor.png
